OFNI ®

​

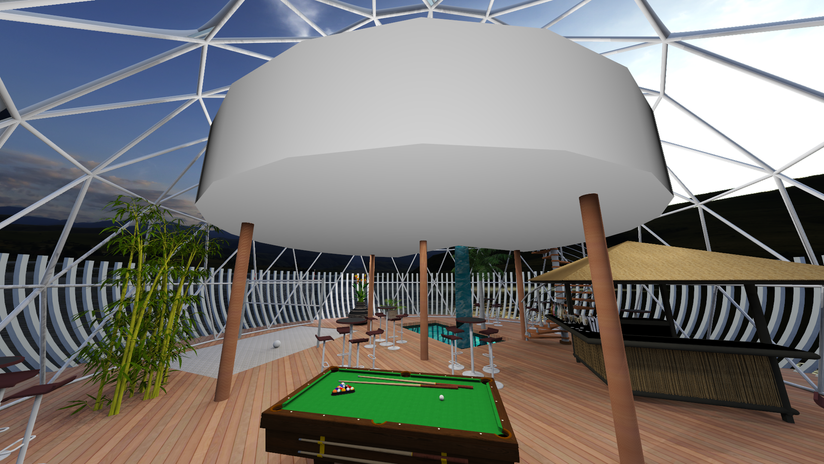

With a diameter of 18 meters, this floating UFO invites you into a new dimension, between ocean and firmament, to sublimate all your greatest occasions. It can be configured to meet your most demanding requirements and adapt to the operation you want to make of it. With its eco-sustainable design, it knows how to combine performance, comfort and durability.

​

Technical dimensions:

​

Length : 18 meters (59 feet)   /   Width : 18 meters (59 feet)   /   Height : 8 meters (26 feet)

Accommodation capacity : 180 people

Overall area : 235 m² (2 529 ft²)   /   First floor covered area : 154 m² (1 658 ft²)   /   Second floor covered area : 55 m² (592 ft²)

​

Structural composition:

​

- Aerodynamic HDPE unsinkable floats
- Aluminum structure
- Composite wood plank decking
- Peripheral curved aluminum guardrail (Safety + privacy screen)
- Structure of GEODESIC (G-14) in powder-coated galvanized steel + Crystal PVC cover 650g / m²
- Solar air extractor (2 300m3 / h)
- Seawater swimming pool (2m35x4m55) with adjustable bottom (0 or 1m20)
- Powder-coated galvanized steel structure for second floor
- Bench-type peripheral guardrail
- Spiral staircase 15 steps
- Fire-retardant synthetic turf carpet
- Reception platform
- Remote-controlled 20hp electric motors + battery park for a 4 hours autonomy
- Bow thruster
- Electric windlasses with chain (30 meters diam.20) + appropriate anchor
- Patented autonomous light buoys for signaling anchorages (Diam. 400mm spherical, yellow)
- Electrical Installation

- Design and CE approval (design category C) + worldwide model deposit

​

Optional equipment:

​

- Reservation for beach volleyball court (sand to be added locally)
- Patented incineration toilet (location to be defined)
- Patented gray water recycling (from 600 liters/day till 10 000 liters/day)

- Patented solar / hydrogen electric autonomy (from 5 000 Wh till 50 000 Wh)

​

Services not included:

​

- Furniture

- Trees
